악세사리

1.차량용 아답터    US$799

P120 Vehicular Power Conditioner

Power in-vehicle equipment

  • Universal DC Input Voltages (8-32VDC)
  • Regulated 12VDC output
  • Low footprint and weight

DOWNLOAD THE DATASHEET

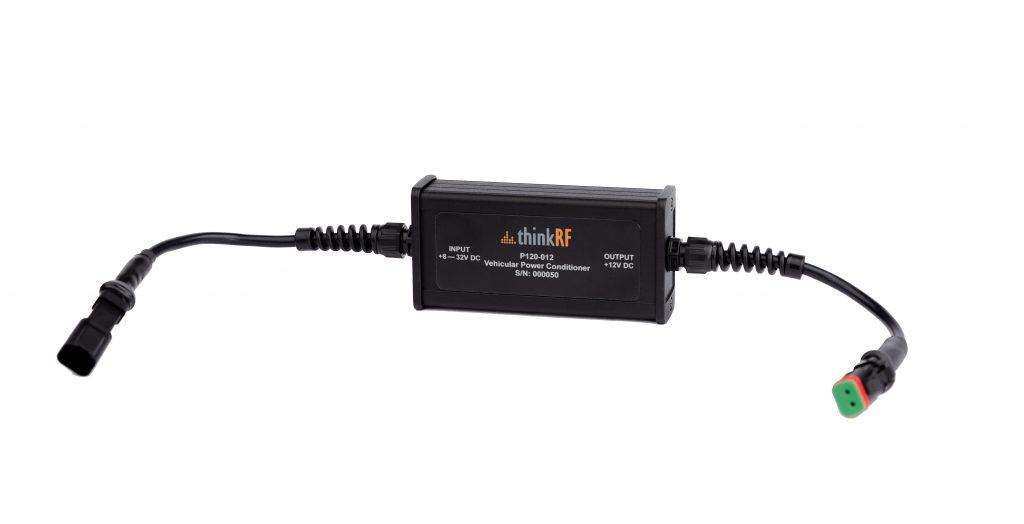

P120 Vehicular Power Conditioner for mobile analysis

Enable Mobile Spectrum Analysis Applications

The ThinkRF P120 Vehicular Power Conditioner allows users to power in-vehicle equipment through a standard vehicle power supply while protecting equipment from vehicular power transients. When combined with the ThinkRF series of Real-Time Spectrum Analyzers, the P120 conditioner enables mobile spectrum analysis applications such as drive testing, coverage mapping, interference hunting, and regulatory monitoring.

Industry Standard Connection Points and Enclosure

The P120 is designed to give a single regulated output of +12VDC under different input voltages ranging from +8V to +32V. The inputs and outputs are provided via strain-reliefed 16 AWG cables with 2-pin square ML-XT style Molex connectors. There is a choice of input using standard vehicle cigarette lighter style connector or loose lead stranded soldered cables. The output cable is terminated with a LEMO series connector.

Compact and Portable Form Factor

The P120 conditioner is compact, lightweight, and portable for easy use in any deployment scenario or vehicle, including military vehicles, vans, boats, or UAVs. Measuring 131 mm x 62 mm x 34 mm, the P120 powers in vehicle equipment without adding significant size or weight to the solution.

Benefits of the P120 Vehicular Power Conditioner

  • Enable mobile spectrum analysis applications such as drive testing, coverage mapping, interference hunting, and regulatory monitoring
  • Lightweight and portable to be easily used in confined spaces such as a vehicle
  • Easily connects to any ThinkRF Real-Time Spectrum Analyzer for complete mobile situational awareness solutions

2.안테나

TAK-408 8GHz thinkRF Log Periodic Antenna Kit US$1,799

TAK-418 18GHz thinkRF Log Periodic Antenna   US$3,099

TAK-427 27GHz thinkRF Log Periodic Antenna   US$3,999


ThinkRF Accessories

ThinkRF Accessories are designed to give users more capabilities and greater coverage when conducting signal analysis and spectrum monitoring.

Learn more about ThinkRF Accessories
