 UWB 디지털샘플링 오실로스코프 및 UWB Radar 디지탈샘플링오실로스코프
엘텍에서는 UWB 샘플링 오실로스코프를 판매 합니다.
 UWB 신호 측정을 위한 디지털샘플링스코프 제품은 아래와 같습니다.
Comparison Table Of Digital Sampling ConvertersModel
|
Number Of Channels |
Bandwidth |
Sampling Rate |
Dynamic
Range |
Time Base |
Noise (RMS)
Typical |
Jitter
Typical |
| SD203TM-18A |
2 |
(0,–18) GHz |
1000 kHz |
±1000 mV |
(0,002 – 200) ns/div
(adjustable with step 0,002 ns/div) |
1,2 mV |
10 ps (2,5 ps RMS) |

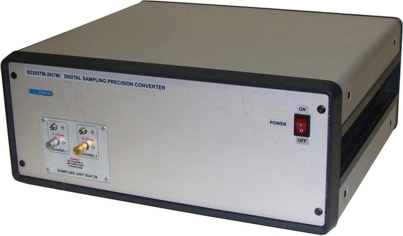

| SD203TM-26A |
2 |
(0,1–26) GHz |
1000 kHz |
±1000 mV |
(0,002 – 200) ns/div
(adjustable with step 0,002 ns/div) |
1,6 mV |
10 ps (2,5 ps RMS) |
| SD203TM-40A |
2 |
(0,1–40) GHz |
1000 kHz |
±1000 mV |
(0,002 – 200) ns/div
(adjustable with step 0,002 ns/div) |
1,9 mV |
10 ps (2,5 ps RMS) |
| SD-10620 |
6 |
0,2–18 GHz |
500 kHz |
±0,5 V |
20 ns |
1,2 mV
(after substruction
of 0 line) |
2,6 ps RMS
(with Generator) |
| SD-10820 |
8 |
0,2–20 GHz |
500 kHz |
±0,5 V |
20 ns |
1,8 mV
(after substruction
of 0 line) |
2,6 ps RMS
(with Generator) |
Comparison Table Of UWB Radar Sampling Converters Comparison Table Of UWB Radar Sampling Converters
| Model |
Channels |
Bandwidth |
Dynamic
Range |
Noise RMS |
Time Window
(Electrical Length) |
Resolution |
PRF |
Operating
Modes |
| GZ6E |
1 |
(0,1–6) GHz |
±500 mV |
0,75 mV |
100 ns/screen
(0,15–15)m
@ ε =1,0 |
25 ps/point (0,0037)m
@ ε =l,0 |
250 kHz |
Real time scanning
(Life signals on screen) |
| GZ62E |
2 |
(0,1–6) GHz |
±500 mV |
0,75 mV |
100 ns/screen
(0,15–15)m
@ ε =1,0 |
25 ps/point (0,0037)m
@ ε =l,0 |
250 kHz |
Real time scanning
(Life signals on screen) |
|
|
